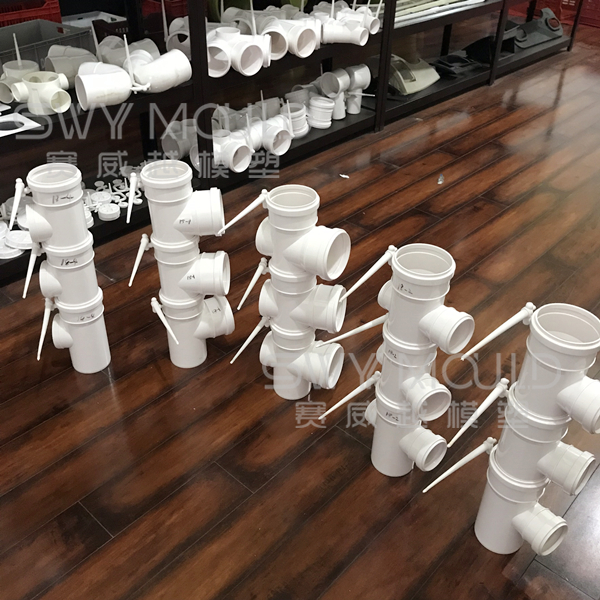

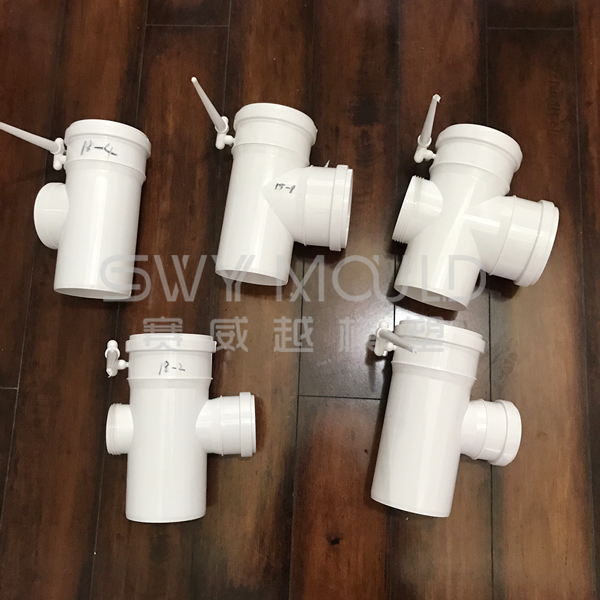

Bathroom Cess-pipe Collapsible Core Tee Mould

Interchangeable tee mould feature

1. Automatic motor-driven unscrewing system

2. Stripping by hydraulic cylinder

3. Interchangeable insert design

4. Cavity and core steel use hardened stainless steel

5. Balanced runner layout for the even injection flow

6. Unique gate designs for fast injection flow

7. Optimal cooling system for faster cycle time

8. Tailor-made solution for the irregular shape pipe fittings

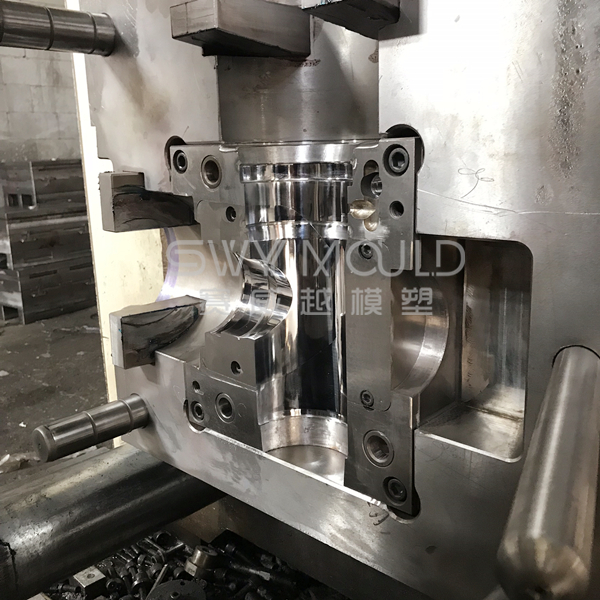

The technique of collapsible core pipe fitting mould

The key for such collapsible moulds should be the collapsible core demoulding system. And it consists of 8 small sliders, as we all know these 8 sliders will merge first, and then pump out together through the cylinder. But actually, these sliders are not possible to pump out at one time completely, they must have a sequence! The 4 sliders will be first moved due to the guide slot’s angle of 68°, which is smaller than the 4 sliders of 78° of the guide slot. It will move to leave some space for the 4 sliders to move later. Also, we’ll have a limit switch to control the sliding stroke of 8 sliders.
